F U L L   T E X T   S O U R C E :    AgING






Multiple recent advances in machine learning enabled computer systems to exceed human performance in many tasks including voice, text, and speech recognition and complex strategy games. Aging is a complex multifactorial process driven by and resulting in the many minute changes transpiring at every level of the human organism. Deep learning systems trained on the many measurable features changing in time can generalize and learn the many biological processes on the population and individual levels. The deep age predictors can help advance aging research by establishing causal relationships in non-linear systems. Deep aging clocks can be used for identification of novel therapeutic targets, evaluating the efficacy of the various interventions, data quality control, data economics, prediction of health trajectories, mortality, and many other applications. Here we present the current state of development of the deep aging clocks in the context of the pharmaceutical research and development and clinical applications.
The recent hype cycle in artificial intelligence (AI) resulted in substantial investment in machine learning and increase in available talent in almost every industry and country. This wave of increased attention to AI was fueled by the many credible advances in deep learning that allowed machines to outperform humans in multiple tasks, including image and text recognition and as well as in the strategy board game, of Go. The advantage of deep learning (DL) systems is in their ability to learn and generalize from a large number of examples [1]. DL methods rapidly propagated into the many biomedical applications, starting primarily with the imaging, text, and genomic data [2, 3]. The availability of large volumes of data and new algorithms made it possible to use deep learning to start making predictions about the activity and pharmacological properties of small molecules [4], identify mimetics of the known geroprotectors [5, 6], and discover new ones [7]. The new techniques in deep learning converging with the advances in chemoinformatics enable the creation of completely novel molecular structures with the desired properties for the protein targets of interest in record time [8–12]. Many efforts are underway to apply deep learning techniques to predict the outcomes of clinical trials [13, 14]. However slowly, the artificial intelligence technologies started propagating into aging and longevity research and are rapidly increasing in popularity resulting in the formation of dedicated conference sessions and entire conferences [15] and focused reviews [16].
Over many generations humans have evolved to develop from a single-cell embryo within a female organism, come out, grow with the help of other humans, reach reproductive age, reproduce, take care of the young, and gradually decline. Due to the relatively short lifespans early in the evolutionary process, the natural age of peak and optimal performance closely follows puberty and lasts approximately one generation. Considering the average age of the Olympic athlete, the age of optimal performance can be safely defined as 20–30. Human aging is a complex multifactorial process associated with and leading to the gradual decline in all body functions, productivity, psychological changes, multiple diseases and inevitably ending in death (Figure 1).

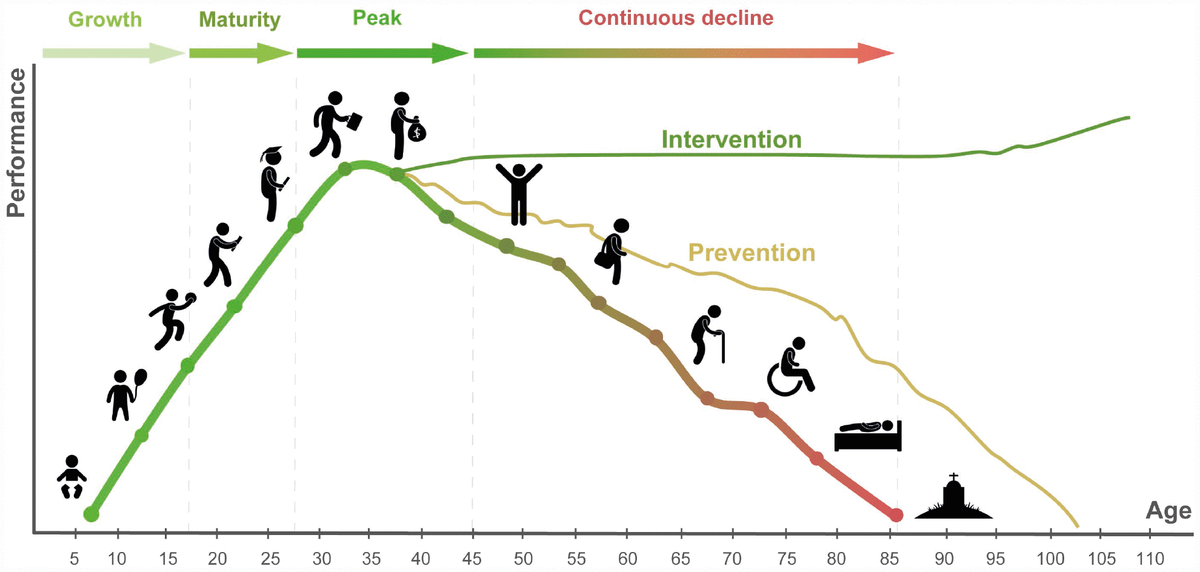

Figure 1.
The general course of human life in the health and performance context. Preventative strategies may increase lifespan and healthspan. Potential restorative interventions reversing the many biological clocks back to the young productive healthy state may help prevent loss of function and possibly result in future performance gains.
Lifestyle and behavioral modifications may help slow down the decline and keep the organism in the best possible state for its chronological age, a term commonly referred to as “healthy aging”. To understand the differences between the “healthy aging” and “unhealthy aging”, evaluate the effects of the many lifestyle choices and a variety of emerging longevity interventions, it is essential to be able to track the rate of aging and develop a comprehensive set of aging biomarkers.
The advent of the aging clocks
There are many biological features that demonstrated correlation with the chronological age such as telomere length [17, 18], racemization of amino acids in proteins [19], and others. The epigenetic age predictors were proposed in 2011 [20]. But it was not until 2012 when the first epigenetic aging clock was published by Hannum [21]. Hannum group used profiled the methylomes derived from peripheral blood samples of healthy individuals to develop the first epigenetic clock consisting of 71 CpG sites and demonstrated the root mean squared error of 4.9 years on independent data. A more precise and comprehensive multi-tissue aging clock was then published in 2013 by Steven Horvath [22] who coined the terms “DNAm clock” and “epigenetic aging clock” and rapidly gained popularity in the aging research community. Horvath used 353 CpG sites and achieved a median error of 3.6 years on the testing set. These clocks were developed using traditional machine learning approaches—notably linear regression with regularization and the use of a limited number of samples. Similar methylation aging clocks were developed for mice [23, 24].
While the epigenetic aging clocks demonstrate spectacular performance in predicting the chronological age, the epigenetic data is not as actionable for target identification or geroprotector discovery. Another abundant and actionable data type is gene expression data. The first transcriptomic aging clock developed on blood-based transcriptomic data was published by Peters et al. in 2015 [25] and extended to other tissues by Yang et al. [26].
In addition to predicting the chronological age and establish the biological relevance of the predictor, it is possible to introduce additional metrics of health status and use the dependent variable. Levine et al. introduced a notion of phenotypic are derived from clinical data [27].
Deep aging and longevity clocks
Age is a universal feature present in all biological and non-biological material objects and is one of the most abundant features present in almost every data set. While the more traditional machine learning methods were employed to develop aging clocks on multiple data types where the many markers are statistically correlated with chronological age, the advent of deep learning lead to the emergence of next-generation of deep aging and longevity clocks. The deep learning models trained on the large numbers of examples manage to capture the highly non-linear relationships between the seemingly unrelated features.
In addition, the realization that age is a universal feature present in all biological and non-biological objects triggered the interest of the artificial intelligence researchers interested in the study of causality and making the deep neural networks (DNNs) more interpretable. This leads to the convergence of aging research and deep learning [3, 16, 28, 29].
Many of the early works in deep learning for aging research stemmed from the simple thought experiments in how humans perceive age with the various sensory organs. A human can guess with reasonable accuracy the age of another human, other species, material and non-material objects using low- and high-resolution imaging data, movement patterns, even scent and touch. When these data types can be featured and used for training and test in abundant quantity, the deep neural networks should be able to learn the features contributing to age prediction and outperform human accuracy. Most humans can describe the most important features they need to predict someone’s age. For example, the number of wrinkles, grey hair, color of the teeth and many others. The deep neural networks in theory should be able to do it even better and may be used to identify the most important features and reconstruct biological pathways implicated in aging (Figure 2A).

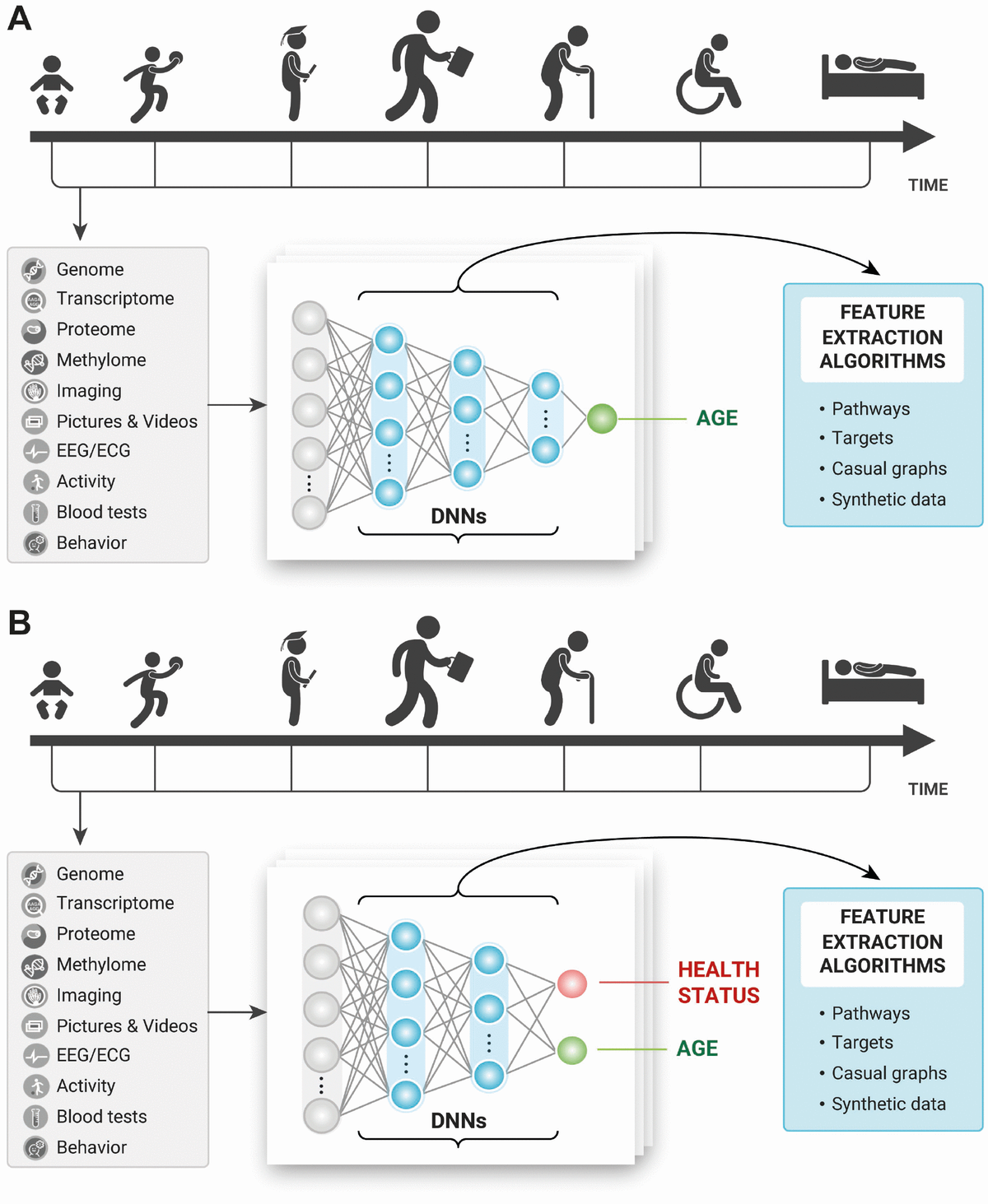

Figure 2. Training the deep neural networks on multimodal longitudinal data to predict (A) age of the individual and (B) age and health status of the individual and using the feature importance and selection approaches to infer causal relationships, pathways, and targets.
This same thought experiment can be extended to disease-specific biomarkers and disease-specific target identification. A human can quickly recognize that the other person is not feeling well just by looking at the person. A trained physician can make educated guesses about the person’s health status by examining the visual appearance. Many genetic diseases manifest in the very obvious phenotypes and can already be identified using simple imaging data using the deep neural networks [30]. Training to predict age and disease at the same time (Figure 2B) may not only enable more accurate diagnosis and training on fewer disease samples but it may be possible to compare the features and pathways between the age groups, disease stages and predictors trained to predict only age.
These though experiments help generate new hypotheses in inferring causality, multi-target processes and understand the progression of diseases better. This approach also helps combine the multiple data types, understand the relationships between the data types and control the quality of the data [31] and possibly assess its biological relevance [32]. Moreover, it may be possible to use this approach to develop “disease clocks” and track the changing importance in the molecular targets in the context of age and disease. For example, the many diseases (e.g. scleroderma) may start as an autoimmune reaction and then progress into sclerosis, fibrosis and other directions and the importance of the addressable targets may change. The techniques developed to identify the most important features and establish causality using age predictors can be used to identify the most important targets in a specific stage of the disease and personalize interventions.
With the first DNN-based aging clocks published in 2016 by Zhavoronkov laboratory [33], significant progress has been made the past few years in deep learned biomarkers of human aging [28, 29]. The first DL clock was constructed using 41 blood test values of over 50,000 individuals. Making use of DNN abilities to capture nonlinear dependencies between input data and target variable, the initially proposed method was able to achieve mean absolute accuracy of 5.5 years on previously unseen 12,000 individuals. Additionally, this study demonstrated how the deep clock can be used for further interpretations of relations between aging and blood parameters. By employing feature importance analysis they identified top parameters related to age changes.
Later, Mamoshina el al. continued the work and validated the approach on several million anonymized subject records of healthy individuals from three populations: South Korean, Canadian, and Eastern European [34]. The analysis showed that DNNs trained to predict age either on Canadian or Eastern European sample sets predict South Korean samples younger than they chronologically are. Further, for each sample with information on mortality status, the authors observed that subject with slowed aging or predicted younger have a higher life expectancy. Equally, subjects predicted older hence with accelerated aging have a lower life expectancy.
Further validation showed that deep hematological clocks can also be used to evaluate the impact of lifestyle choices on aging. In this manner, Mamoshina et al. demonstrated that tobacco smokers are predicted older than they chronologically are with individuals chronologically younger 55 years predicted twice as old [35]. In addition to age prediction, the authors showed the DNNs can also predict smoking status potentially replacing the error-prone self-reporting.
The rapid development of high-throughput methods enables the advances of DL omics-based aging clocks. While transcriptional data is among the most abundant data types, a large scale transcriptomic analysis remains a challenge [36]. Nevertheless, early in 2018, the first deep transcriptomic aging clock was presented for gene expression profiles of skeletal muscle healthy individuals [37]. The best model achieved mean absolute error of 6.24 years on unseen testing samples. To explore the age-related expression changes and evaluate the potential of age predictor to select therapeutic targets, authors compared a comprehensive set of ranking methods to identify protein-coding genes related to muscle aging.
While most of the progress has been made in the development of deep molecular aging clocks, the facial aging prediction is also a promising diagnostic tool. A research lab of the computer vision company Haut. AI proposed a deep photographic aging clock, PhotoAgeClock, developed using a set of over 8,000 anonymized high-resolution eye corner images [38]. Achieving a mean absolute error 2.3 years on the previously unseen by the model testing set, this age predictor is yet the most accurate. The proposed approach also was able to identify facial areas exposing age the most, with the skin around eye being the most age-relevant area.
Most of the practical results and most impressive achievements in deep learning are in imaging [2] and medical imaging is not an exception. Imaging-based human age predictors were developed for a variety of applications and as early as the estimation of gestational age [39].
Many deep aging clocks are being developed with the practical forensic applications in mind. Forensic age predictors were developed using femoral bone mineral density [40]. Age predictors utilizing deep learning were also developed for the estimation of age of otoliths of fish [41].
Magnetic Resonance Imaging (MRI) data is commonly used to train the deep neural networks to predict the age of the patient [42]. This technique may be used for early diagnosis and staging of a variety of neurological disorders. There are early signs that this approach may work in Multiple Sclerosis (MS) [43]. Most recently an attempt was made to correlate the predicted age by MRI and chronological age in people with depression [44]. While no meaningful correlation was found, other data types may be more applicable for this task.
Physical activity data can be used to predict the person’s age. Age predictors were developed using the data collected for people walking on a sensor floor [45].
Applications of deep aging clocks in the pharmaceutical industry
Recent advances in artificial intelligence are rapidly propagating into the pharmaceutical drug discovery and drug development practices. The intersection of recent advances in AI and aging research yields many new tools and applications for the pharmaceutical industry to exploit—at every step of the research and development process, as well as in personalization, marketing, and real-world evidence. Deep aging and longevity clocks can be applied in many areas of pharmaceutical research and development starting from biological data quality control and management to age-personalized medicine, clinical trials enrollment analysis and marketing [28].

Edited by Engadin, 30 November 2019 - 10:52 PM.
